Bad elco's

Modified: 01-11-2011


Werkt bij u ook de switch, een moederbord of andere elektronica niet goed en is deze geproduceerd tussen circa 1999 en 2003 dan zijn waarschijnlijk de elco's daarvan de oorzaak. Kijkt u even mee?

Problems with your switch, motherboard or other electronics and produced between 1999 and 2003, probally you have bad elco's. Just have a look.

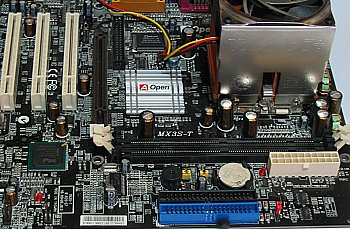

Een mooi moederbord die MX3ST van AOpen, altijd goed werken totdat op een dag de PC kuren begon te vertonen. Ach ja denk je software van die grote reus, gewoon een keer opnieuw installeren en over is het probleem tenminste dat dacht ik. Helaas de problemen bleven. Pc opengemaakt en ja hoor wat zie ik opgebolde condensatoren en niet een maar bijna allemaal. Op de foto zijn het al de goudkleurige elco's.

A good motherboard from AOpen MX3ST always work well until one day the PC cures began to show. Oh well do you think software of the big giant, just reinstall and the problem goes away I thought so. Unfortunately the problems continued. PC opened and yes I see bulging capacitors and not one but almost all. In the picture are all the gold capacitors.

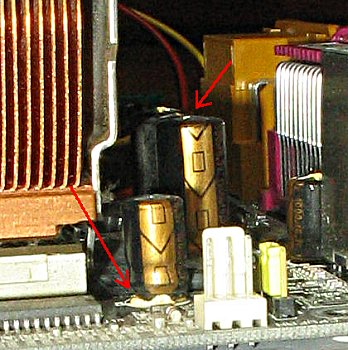

Tja en het kan natuurlijk nog erger als de condensatoren gaan uitlopen, kijk maar op de foto. De onderste pijl geeft de vieze troep aan, de bovenste pijl wijst naar de gebolde bovenkant van een elco.

Well of course it is obviously even worse when the capacitors leak, just look at the picture. The bottom arrow indicates the dirty mess, the upper arrow points to the curved top of a capacitor.

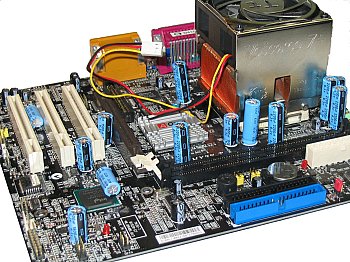

Tja er zit niets anders op dan alle slechte elco's te verwijderen en te vervangen door nieuwe low ESR elco's (dus niet de gewone!). Het resultaat mag er zijn kijk maar naar de foto een "gloednieuw" moederbord.

Well there's no choice but to remove all the bad capacitors and replace them with new low-ESR capacitors (not normal ones!). The result is impressive. Look at the picture a "brand new" motherboard.

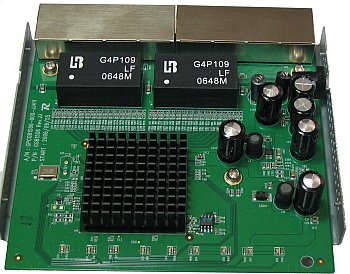

Tja en wat geldt voor het moederbord geldt ook voor mijn switch, een SD2008. Een tijdje (ongeveer een jaar) hebben ze goed gewerkt en daarna ineens niet meer. Een RMA geschreven en ik kon de switch opsturen naar Linksys. Een week later kreeg ik een nieuwe in de bus. Maar helaas ook deze werkte niet. Afijn een aantal RMA's later was ik het zat en heb de switch opengemaakt. Ondertussen had ik al wel op diverse sites gelezen dat er problemen waren met de elco's. U begrijpt het al: waardeloze elco's; kijkt u maar goed naar de twee volgende foto's. Bollende maar nog niet lekkende elco's.

Well what goes for the motherboard also applies to my switch, an SD2008. Some time (about one year), they worked well and then suddenly not. A RMA written and I could send the switch to Linksys. A week later I got a new one. But unfortunately it did not work. Well some RMAs later I was tired and opened the switch. Meanwhile I had already read on various sites that there were problems with the capacitors. You understand it: worthless capacitors, but look closely at the two following pictures. Bulbous but not leaking capacitors.





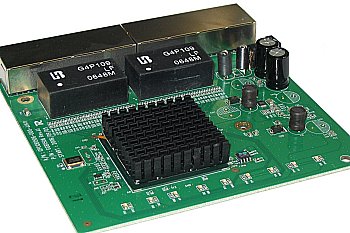

Op de volgende foto zijn de 4 elco's verwijderd, dit is een fluitje van een cent. Er zijn nu 4 lege plaatsen, de elco hoogte mag slechts 20mm zijn. De elco's die ik had besteld voldeden hier precies aan.

On the next picture, the four capacitors are removed, this is a piece of cake. There are now four empty spaces, the capacitor height may only be 20mm. The capacitors that I ordered did exactly this.

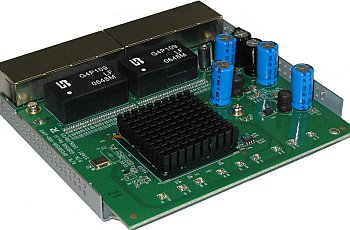

Na het plaatsen van de 4 nieuwe elco's met zeer lage ESR (dus geen gewone elco's) was de switch weer als vanouds: gewoon werken. Voor 2 euro de switch gerepareerd, Linksys heeft er heel wat meer aan besteed.

After placing the four new capacitors with very low ESR (no ordinary capacitors) the switch works as usual. The switch repaired for just 2 euros, Linksys has a lot more to spend.
